The Marshall Professional P.A. System – Big Sound, Bigger Presence
When most people think of Marshall, they think of guitar stacks, searing solos, and thunderous riffs. But in 1971, Marshall wasn’t just building backlines, they were stepping into the front-of-house world with their Professional P.A. System. True to form, they didn’t just build a modest mixer and a couple of speakers; they went full throttle.
This wasn’t just a side project. It was a serious, high-powered, modular live sound solution built for the growing demands of large stages and booming vocals.
If you wanna sell your vintage Marshall from 1963-1974 click here
What Is It?
The Marshall Professional P.A. System was designed to offer more volume with clarity and quality — something live sound reinforcement in the early ’70s often struggled with. It was a modular setup, centered around a mixer head and a set of 200-watt slave amplifiers driving high-powered speaker cabinets with built-in high-frequency horns.
It was available in 100-watt or 400-watt configurations, but could easily scale up using additional slave amps.
Key Components:

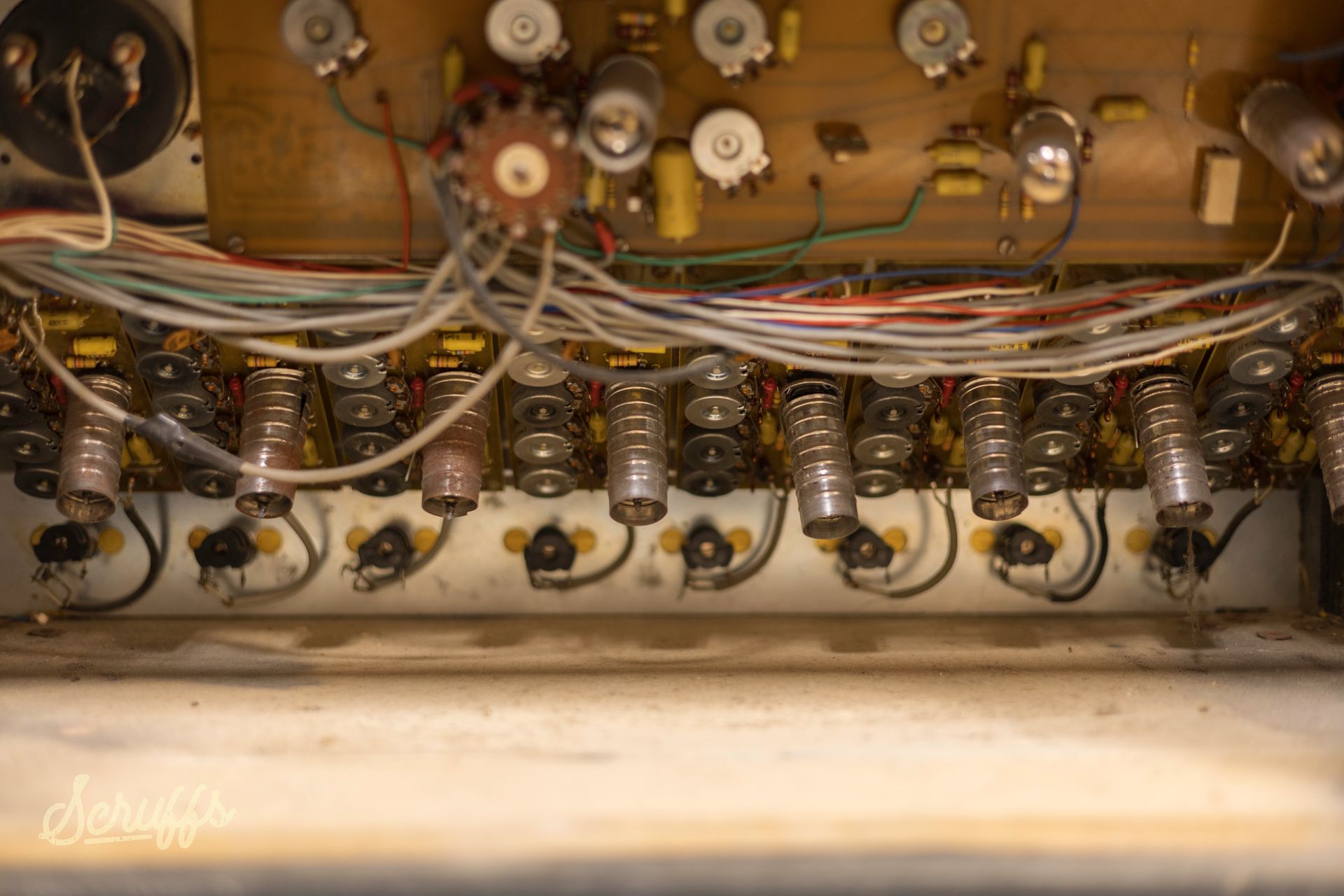

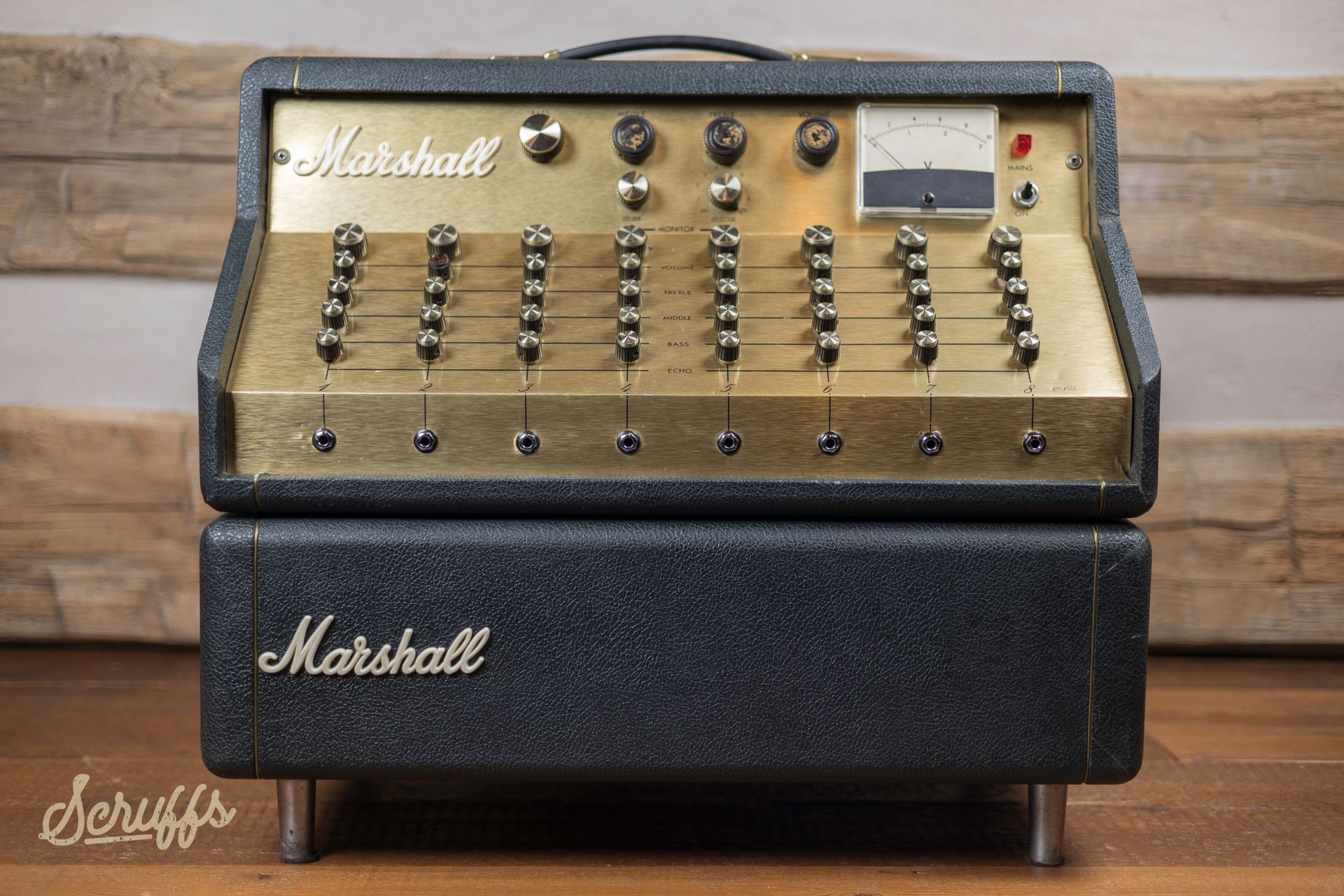

- 2030 Eight-Channel Mixer Unit
A powerful analog mixer with 8 individual channels, each featuring Treble, Middle, Bass, Volume, and Reverb controls. All channels were summed to a master section with full tone and volume control. - Built-in VU meter
- Headphone output with its own volume
- 10-way selector for monitoring channels
- Reverb send/return capabilities
- Dimensions: 25" W x 15.5" D x 12" H (63.54 x 39.37 x 30.48 cm)

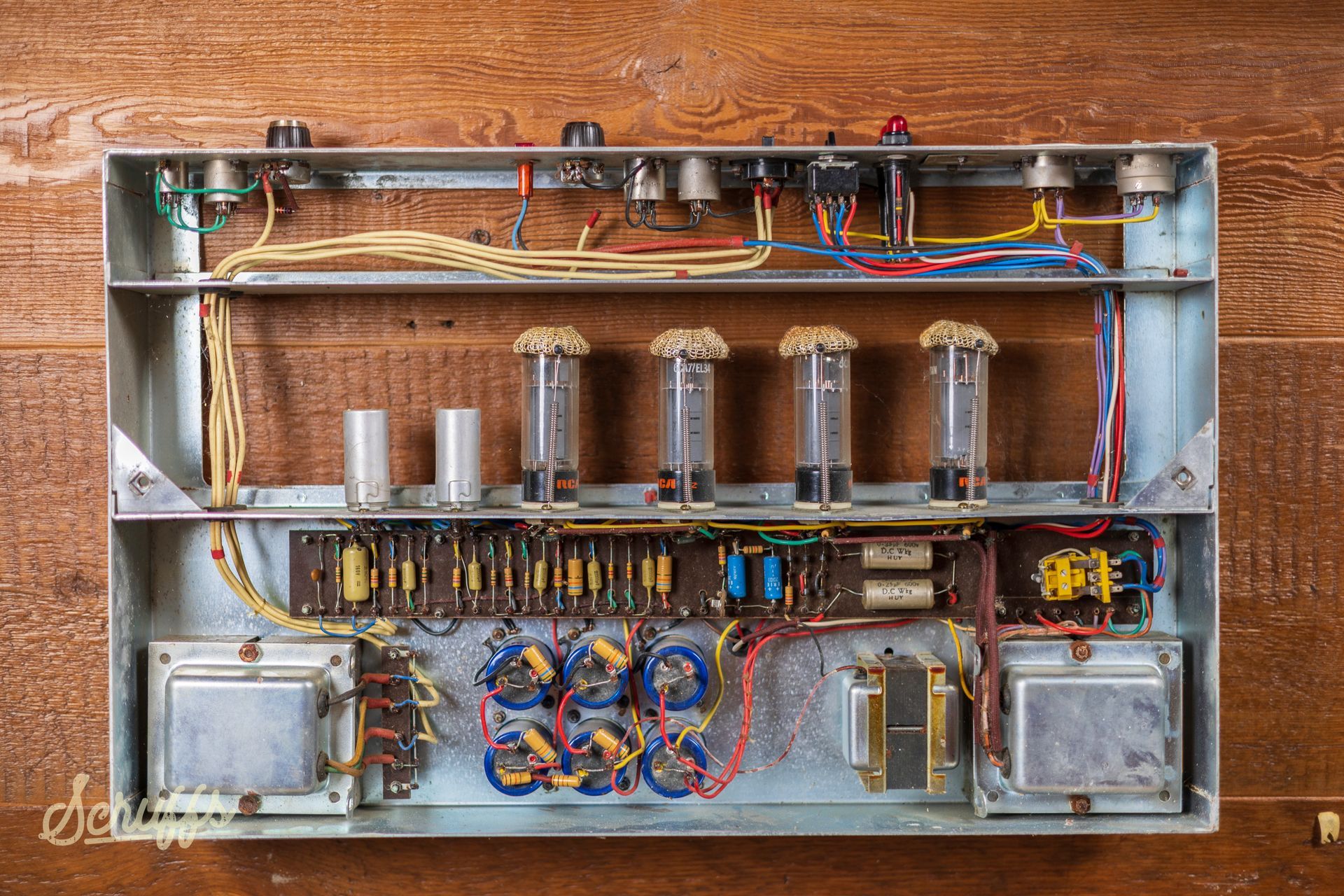

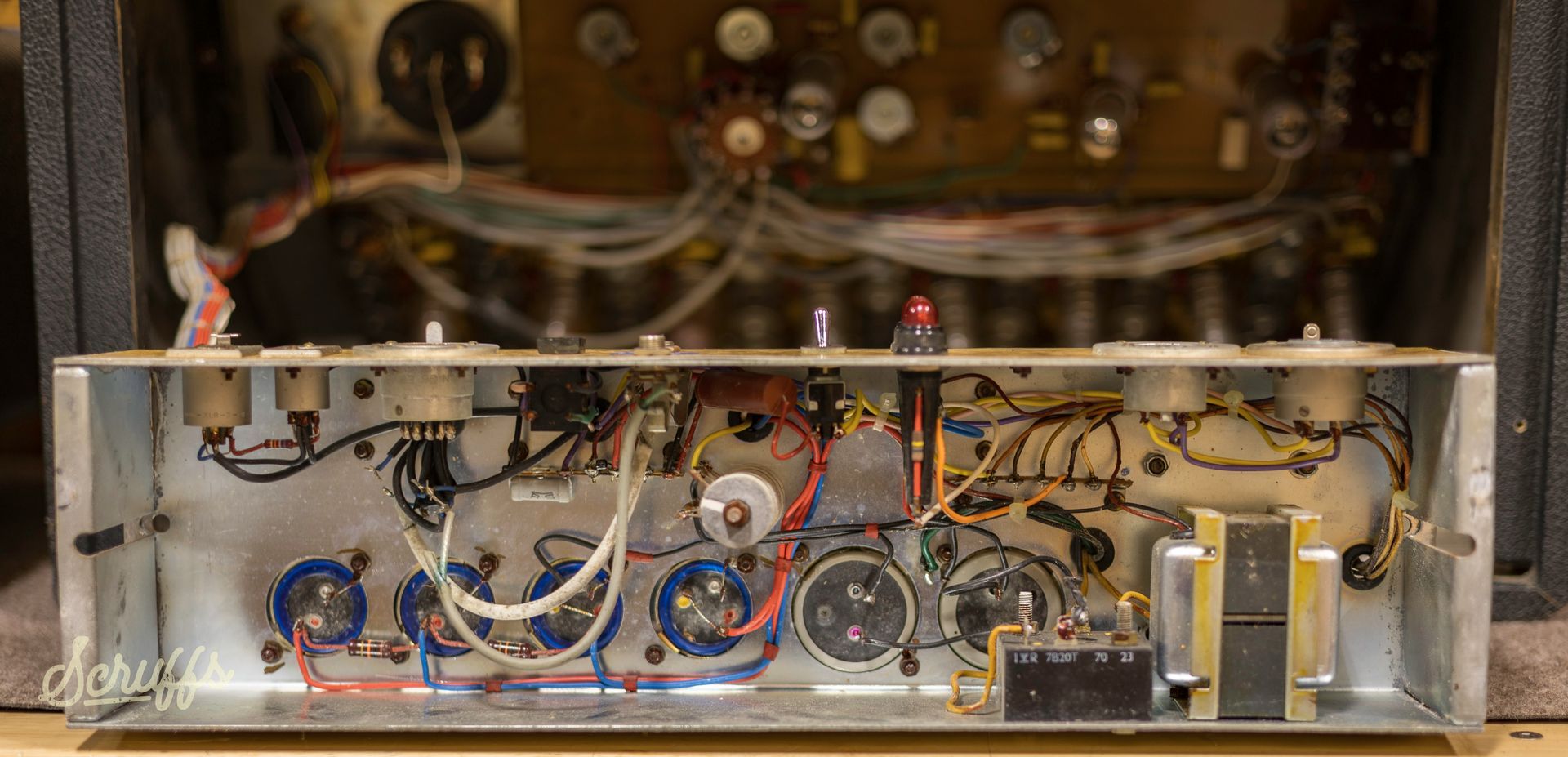

- 2031 Slave Amplifiers
Each a 100-watt powerhouse, designed to stack neatly under the mixer. They featured: - Volume and presence controls
- ON/OFF switch

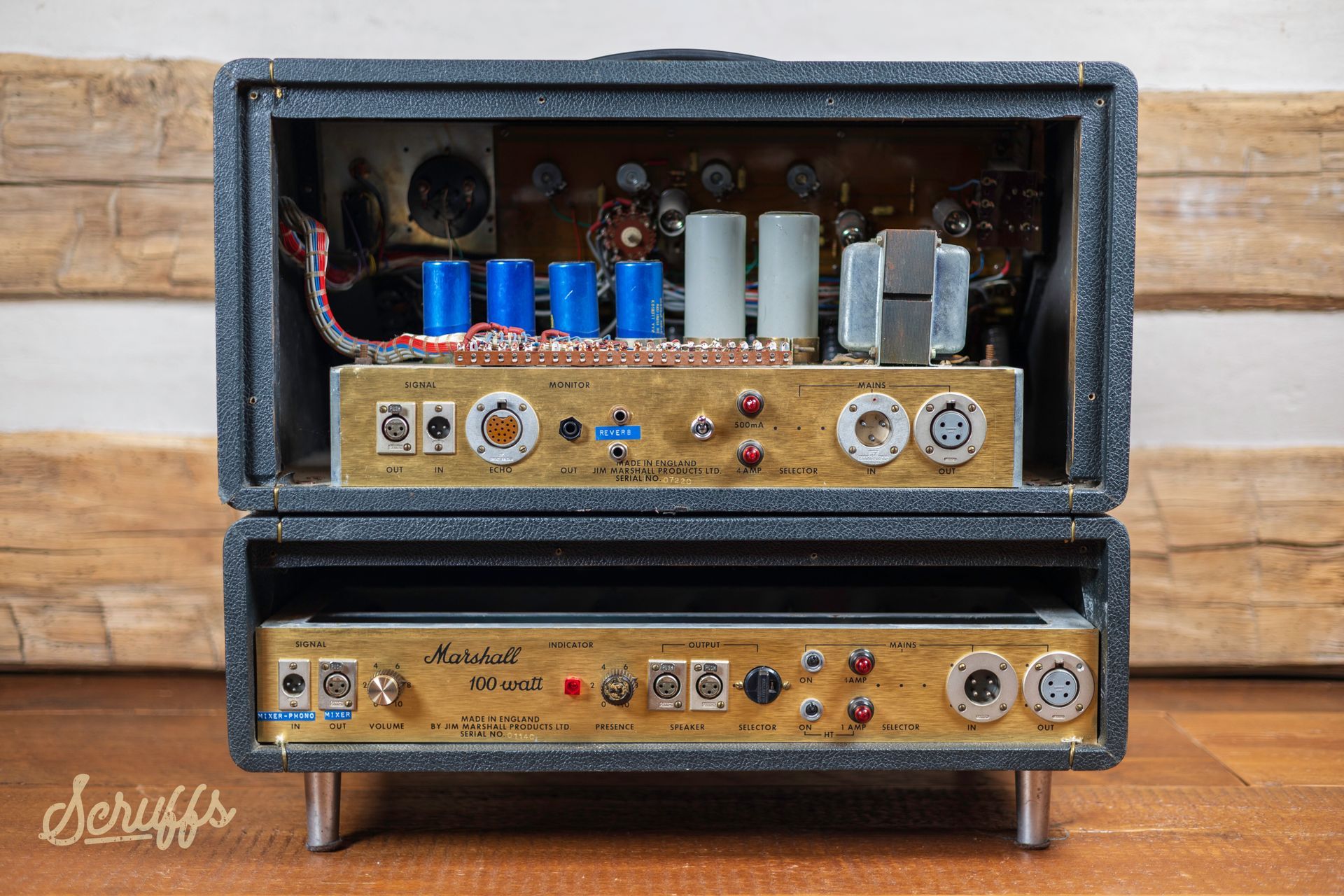

- Rear panel with speaker outputs, slave link socket, and power input
- Warning-light fuse holders
- Dimensions: 25" W x 15.5" D x 6.5" H (63.54 x 39.37 x 16.51 cm)

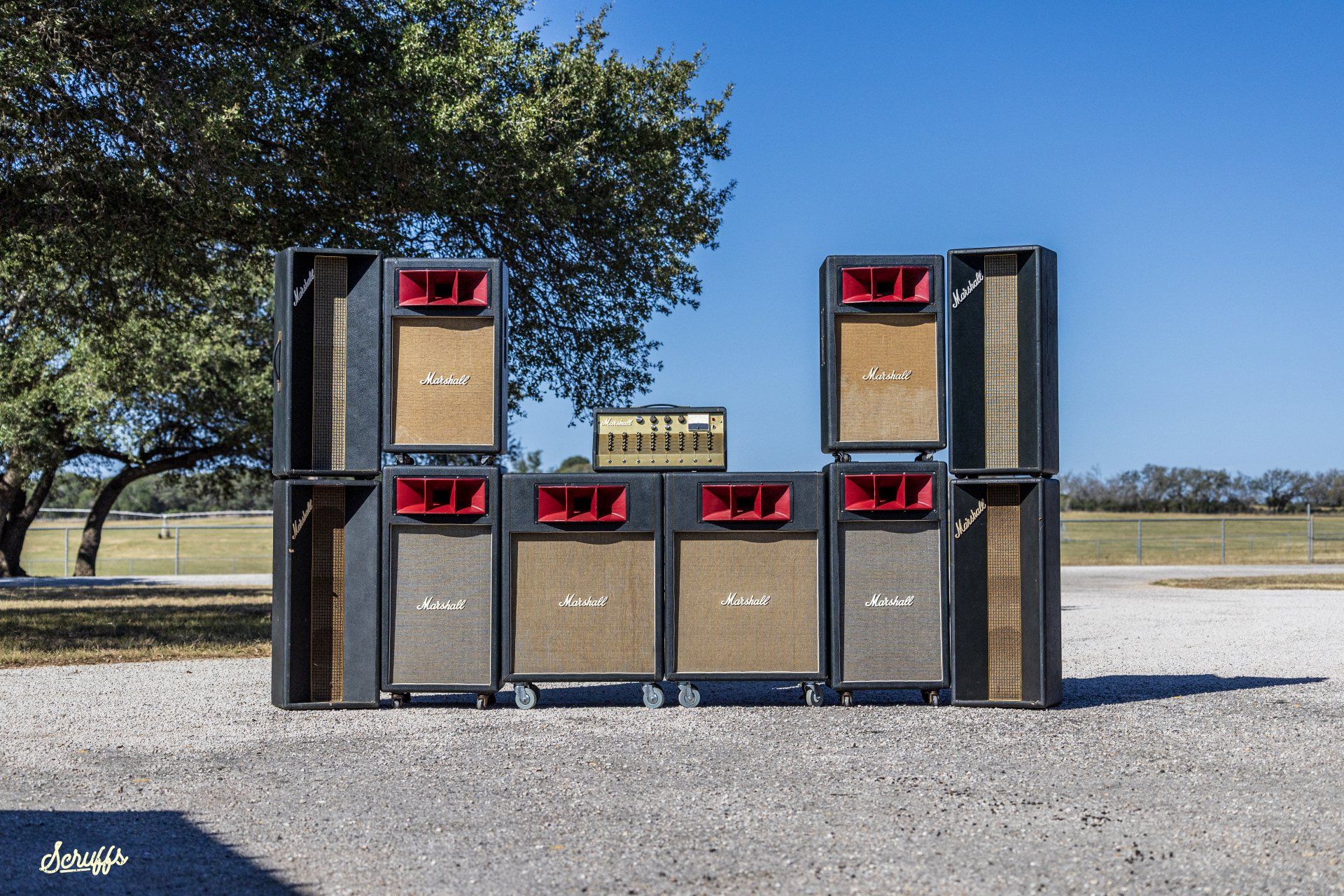

- 2029 P.A. Speaker Units
Each 100-watt cab loaded with 2 x 15" Celestion heavy-duty speakers + a twin-drive high-frequency horn. These things were built to be loud and crisp. - Dimensions: 42" H x 22" W x 18" D (106.68 x 55.88 x 45.72 cm)
- 2027 60-Watt P.A. Speakers
Smaller versions with 2 x 12" speakers and a single-drive high-frequency horn. - Dimensions: 36" H x 22" W x 15" D (91.44 x 55.88 x 38.1 cm)
Why It Mattered
By 1971, live music had outgrown coffee shop P.A.s and tiny vocal columns. Festivals and larger venues demanded real power. Marshall responded by giving bands a system they could stack, expand, and count on — with sound quality that matched their legendary guitar amps.
This wasn’t just a “vocal amp” anymore — this was a system built for serious performance, capable of handling vocals, keyboards, and other instruments with full-spectrum clarity and volume.
Flexibility & Expansion
The genius of the Marshall P.A. system was its modularity. Need more power? Just add more 2031 slave amps and 2029 speakers. Want cleaner stage mix control? Use the 2030 mixer’s dedicated monitoring and reverb sends. It was a pro-level setup at a time when few companies were offering anything similar for rock bands.
Why It Still Matters
Original Marshall P.A. systems are incredibly rare today — not many were built, and most were worked to death in clubs and on tour. But for collectors and vintage sound fans, they represent a lost chapter of Marshall’s innovation.
And make no mistake — these systems sounded good. They were built with the same care and firepower as the company’s amps, with a distinct character and tone of their own.
If you’re looking to own a forgotten piece of Marshall history — or imagine a world where your entire live rig matched head-to-toe in Marshall — this is where that dream started.
