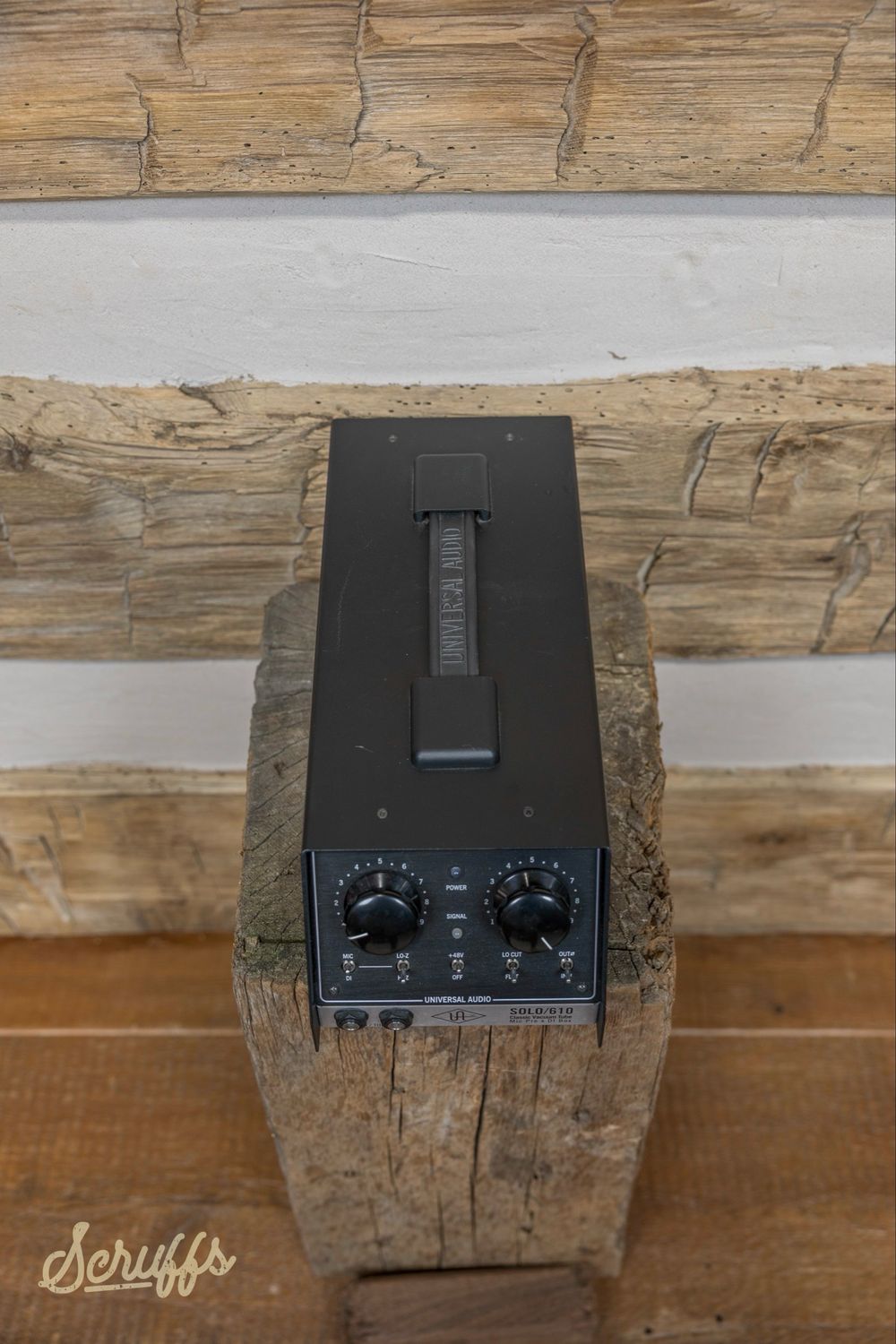

It features a simple front panel with gain and level controls, plus a two-band EQ (±9 dB shelving at 100 Hz and 10 kHz). You get switchable mic/line/Hi-Z inputs, +48V phantom power, polarity reverse, and a 20 dB pad for handling hotter sources. The tube circuit runs on dual 12AX7/6072A tubes, giving you the thick harmonics and natural compression that made the 610 famous.
Specs:
Mic Input Impedance: 500 / 2k ohms (switchable)
Line Input Impedance: 47k ohms
Instrument Input Impedance: 2.2M ohms (Hi-Z)
Gain Range: 61 dB (Mic), 30 dB (Line), 47 dB (Instrument)
