Marshall Model 2047 P.A. Column Cabinet
The Marshall Model 2047 represented a bold step into modern public address design during the early 1970s. With its compact horn-loaded configuration and high-efficiency speaker layout, the 2047 offered portability and projection tailored for bands, rehearsal halls, and small venues requiring clarity without clutter.
If you wanna sell your vintage Marshall from 1963-1974 click here
Technical Overview

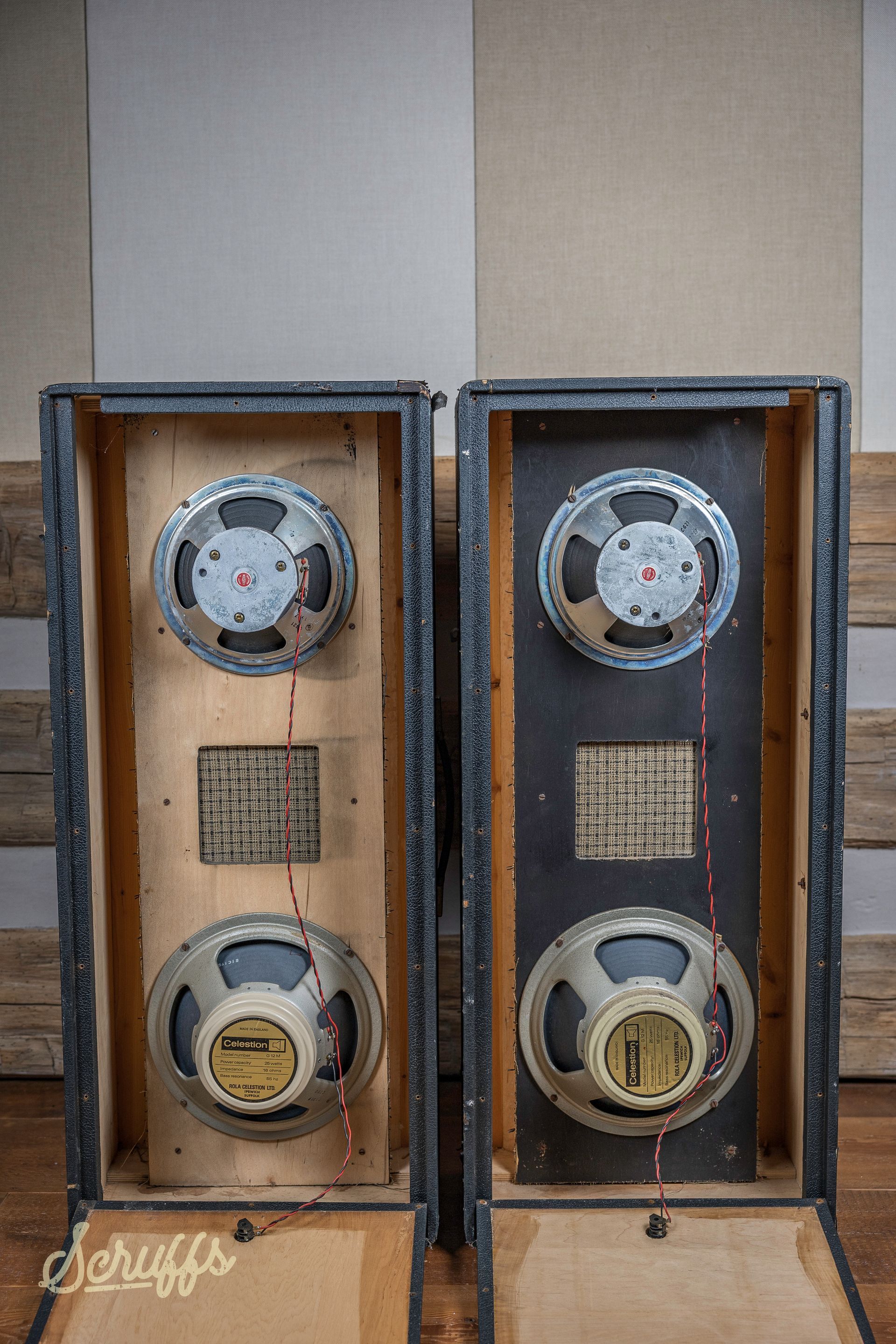

Each 2047 cabinet contains:
- 1 x 10" Celestion speaker
- 1 x 12" Celestion speaker
This dual-driver configuration gave it a balanced frequency spread, combining the tight attack and high-frequency response of the 10-inch driver with the warmth and low-end extension of the 12-inch speaker. Together, the two speakers handled up to 50 watts of power per cabinet.
The cabinet’s design utilized a front-loaded horn construction for efficient sound dispersion, helping vocals and spoken word carry clearly in both indoor and outdoor spaces.

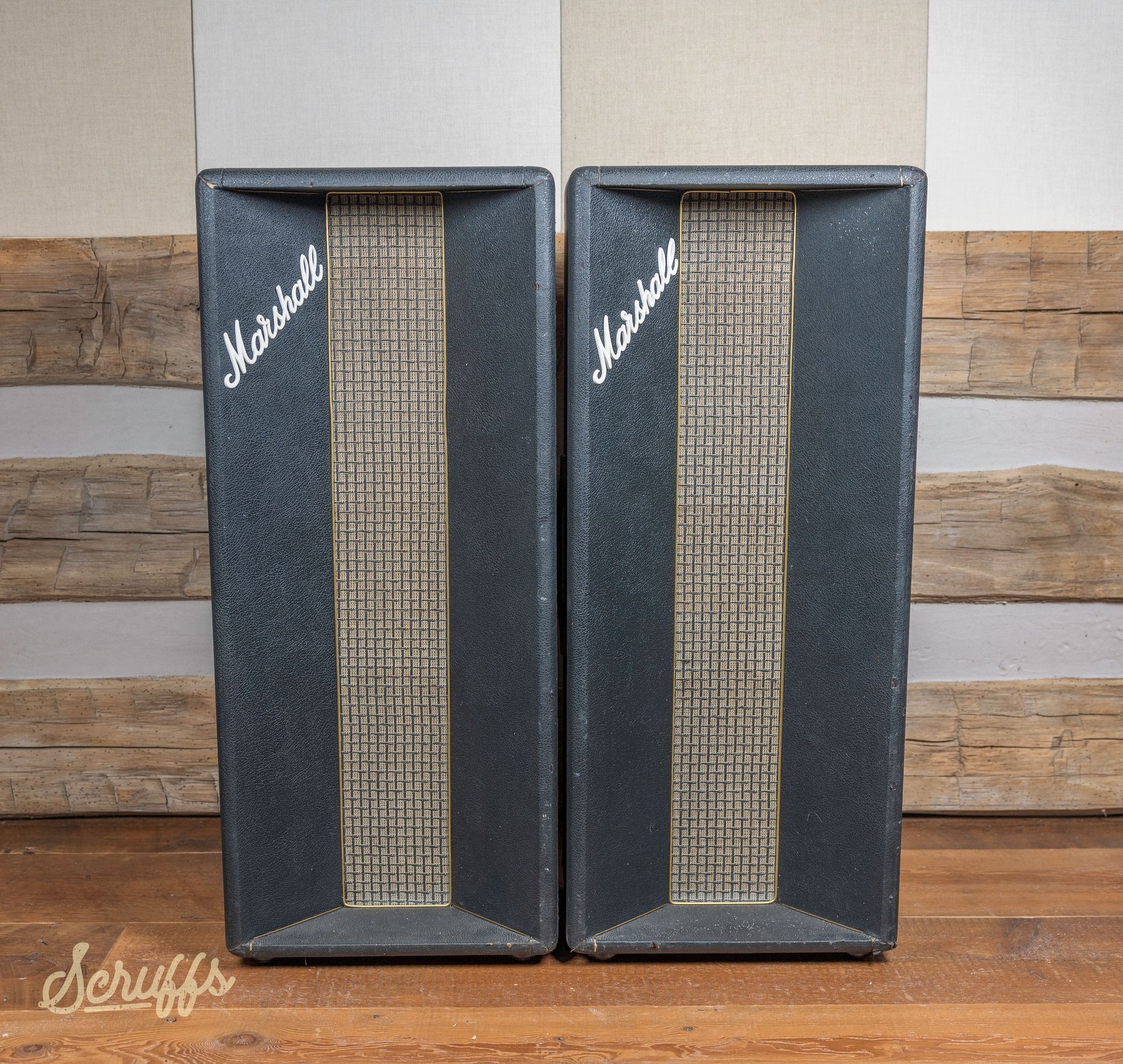

Design and Form Factor
The 2047 followed a “V-column” flared design, a visual and functional evolution from traditional box-shaped cabinets. It stood approximately 5 feet tall (152.40 cm) and featured a narrow vertical profile that made it ideal for placement on either side of a stage or in compact P.A. stacks.
This unique shape not only projected sound forward with greater efficiency but also provided an elegant, modern aesthetic suited to professional environments.

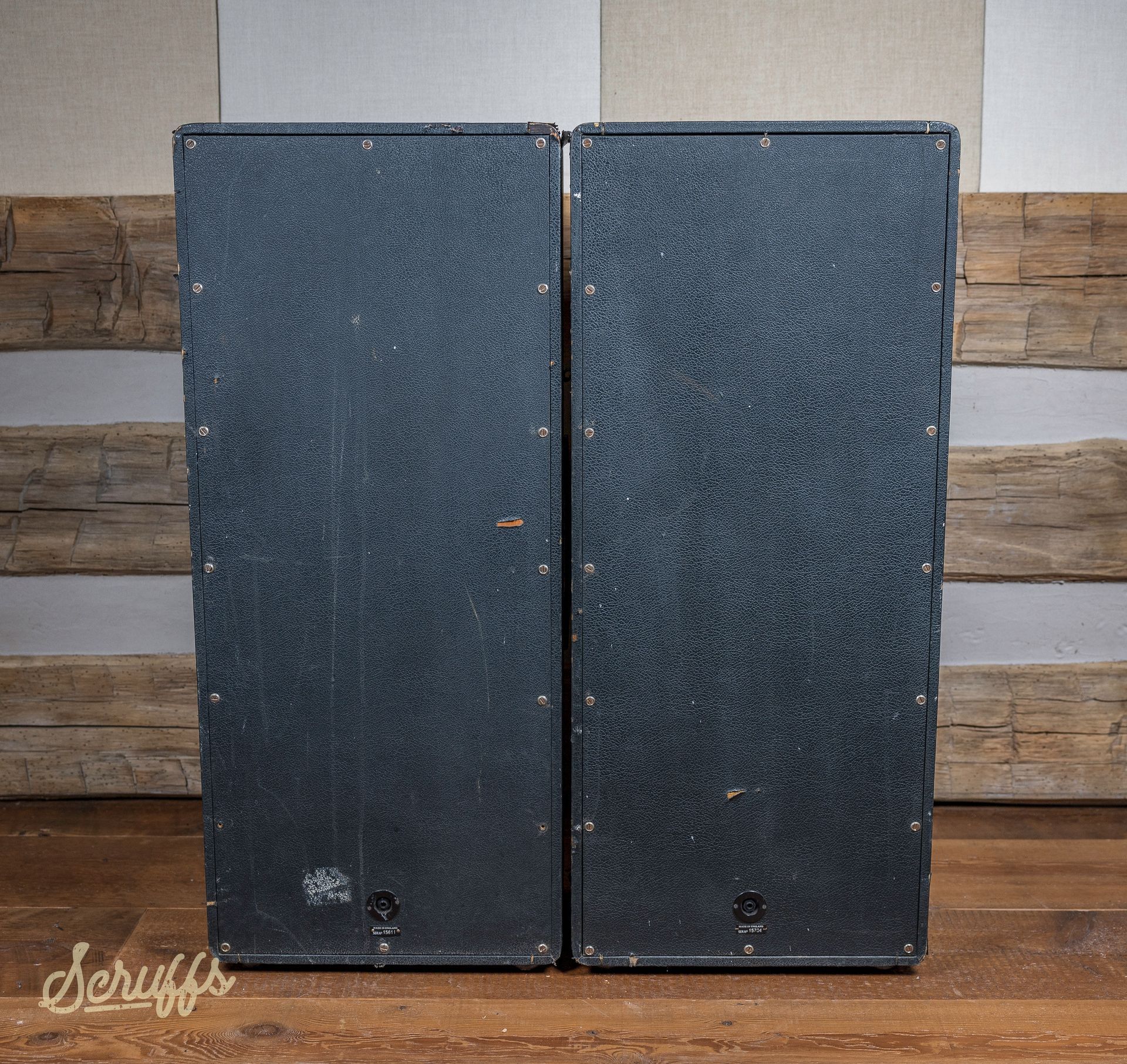

Construction and Build Quality
Like all Marshall cabinets of the era, the 2047 was built from seasoned wood and covered in durable black vinyl. It featured recessed handles for transport and could be paired easily with Marshall’s mixer amps such as the Model 1985(50 watts), Model 1968 (100 watts), or Master P.A. Model 2003.
Each cabinet came with waterproof covers and two 21’ speaker leads, making it road-ready for touring bands or permanent venue installations.
Use and Application
The 2047 was designed to be used in pairs, providing stereo or wide-spread mono reinforcement for vocals, acoustic instruments, or small combo bands. It also worked exceptionally well in rehearsal studios and portable P.A. setups where space and clarity were key concerns.
Its 50-watt capacity per column made it ideal for use with Marshall’s lower-powered P.A. heads, offering sufficient output without overwhelming smaller venues.
Collector Perspective
While the 2047 was not as widely adopted as guitar cabinets or large-format P.A. systems, it represents an important evolution in Marshall’s product line. Today, original 2047 cabinets with factory-matched Celestion drivers and intact tolex are increasingly rare, appealing to collectors of vintage live sound gear and Marshall completionists alike.
