Marshall Model 1960 Cabinet
The Marshall Model 1960 is perhaps the most iconic speaker cabinet ever built. Introduced in the 1960s and solidified in form by 1971–1972, this 4x12" cabinet became the definitive image and sound of the classic rock stack. Designed for use with Marshall's most powerful amplifier heads, the 1960 was foundational to the tone and power of arena-sized performance.
If you wanna sell your vintage Marshall from 1963-1974 click here
Technical Overview

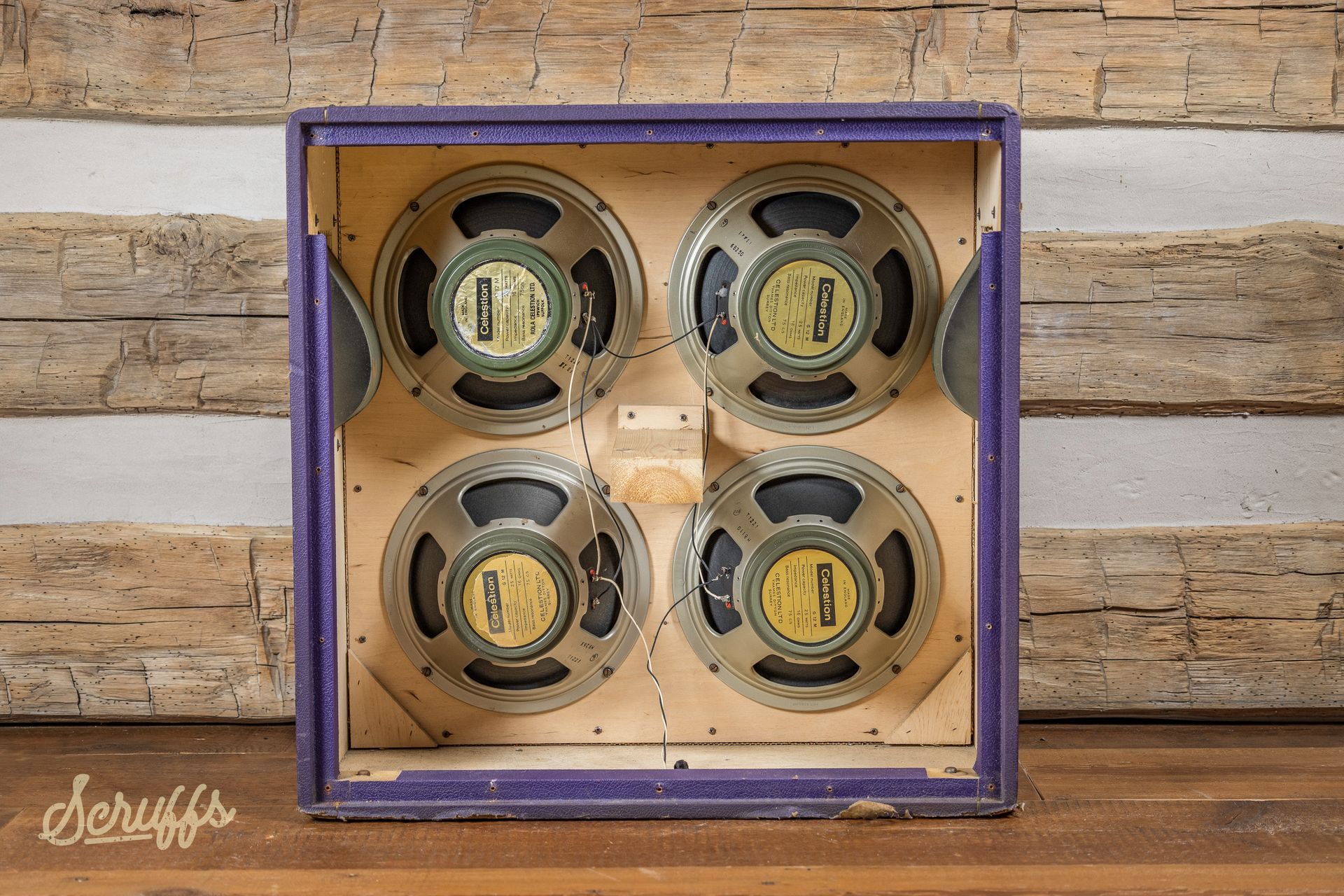

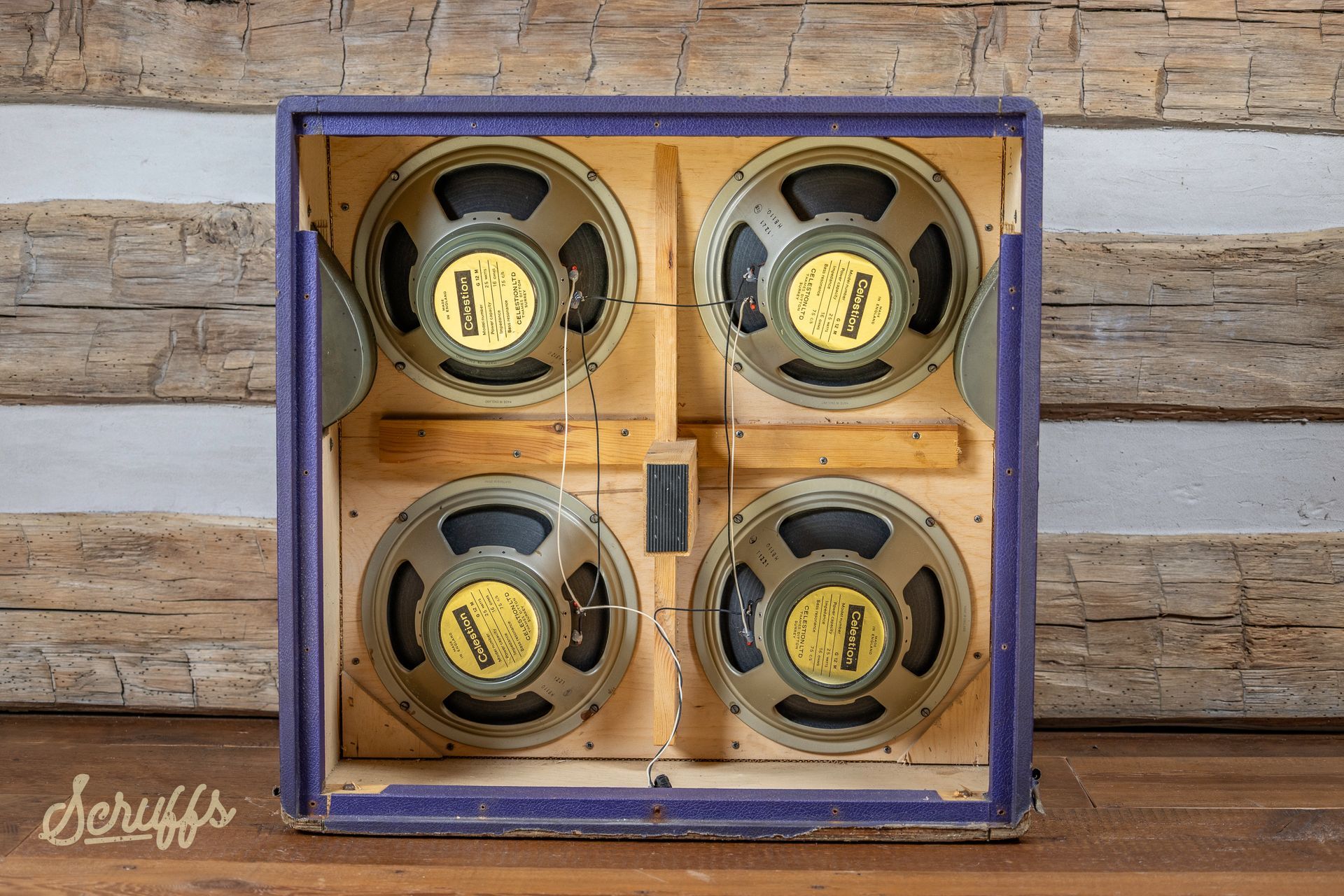

The Model 1960 was equipped with four 12-inch Celestion speakers, housed in either an angled or straight front cabinet:

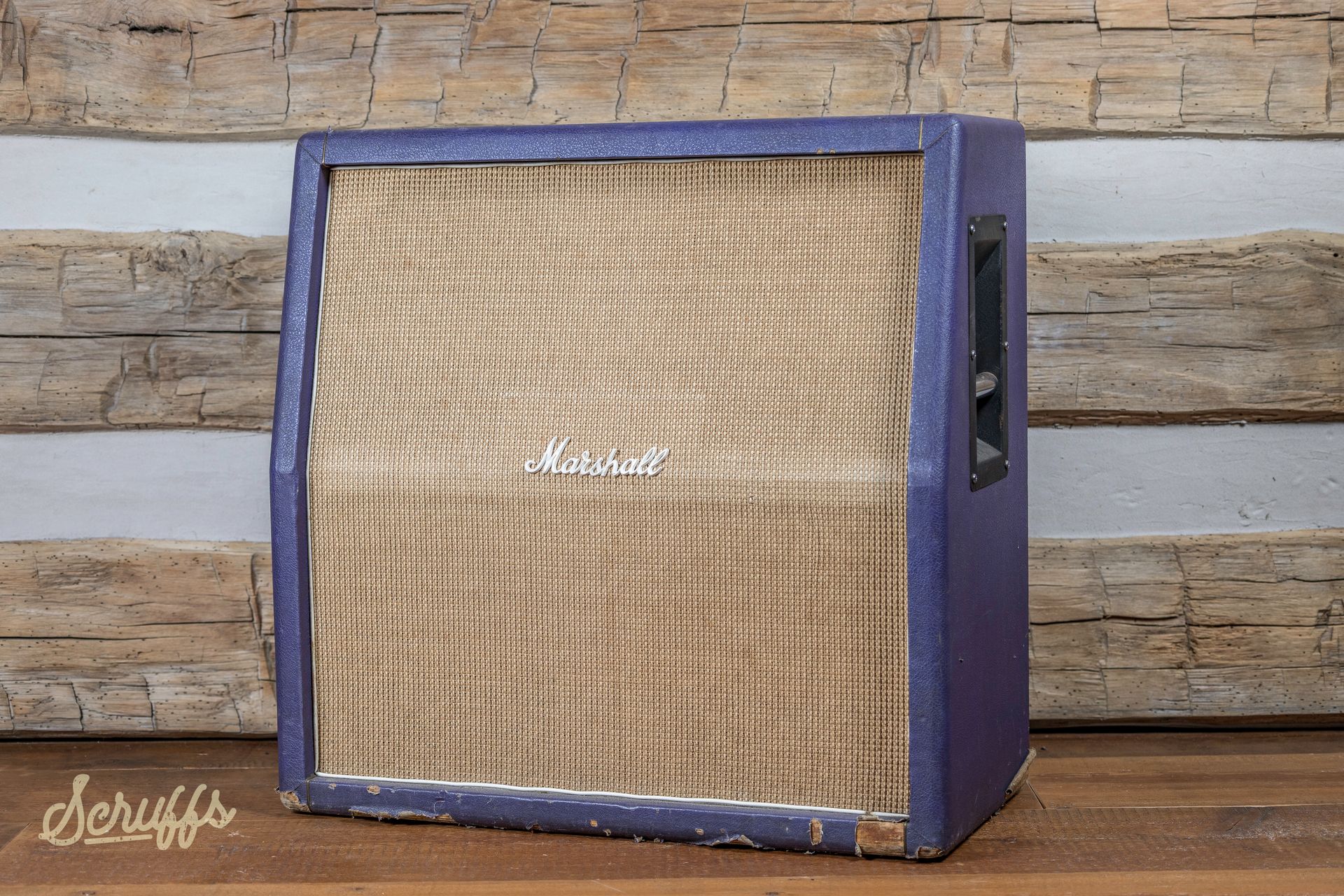

- Model 1960 (angled front) – commonly used as the top half of a full stack.
- Model 1960B (straight front) – the bottom half of the stack.
Each version was rated for 100 watts of output and loaded with Celestion’s heavy-duty speakers, tuned to deliver the aggressive mids and smooth highs that defined British rock tones of the era. These cabinets worked in tandem with the 100-watt Model 1959 "Super Lead" amplifier, forming the legendary full stack.
Dimensions and Design
According to the May 1971 catalog, both angled and straight versions of the 1960 cabinet measured:
- Height: 29½ inches (74.30 cm)
- Width: 30 inches (76.24 cm)
- Depth: 14 inches (35.56 cm)
Both cabinets shared the same internal volume and speaker configuration. The only difference was the front baffle tilt, which gave the angled cab greater onstage projection—especially useful in large venues.
These cabinets were constructed using seasoned wood, wrapped in Marshall’s durable black vinyl covering, and came fitted with recessed side handles and castors for stage mobility.
If you wanna sell your vintage Marshall from 1963-1974 click here
Sound and Performance
The sound of a 1960 cabinet—especially when paired with a Plexi or early JMP-era 100-watt head—is immediate, full-bodied, and unmistakable. The cabinet’s large internal volume enhanced its low-end response, while the four Celestion speakers combined for a highly responsive attack and rich harmonic saturation.
Its angled version helped guitarists hear themselves on crowded stages, while the straight version provided a solid, bass-rich foundation below.
Use in Stack Configurations
By 1971–72, Marshall officially recommended using the 1960/1960B pair as a matched stack beneath the 100-watt Model 1959 amplifier. This configuration became the blueprint for rock stages around the world and remains a visual and sonic icon.
Collector Value

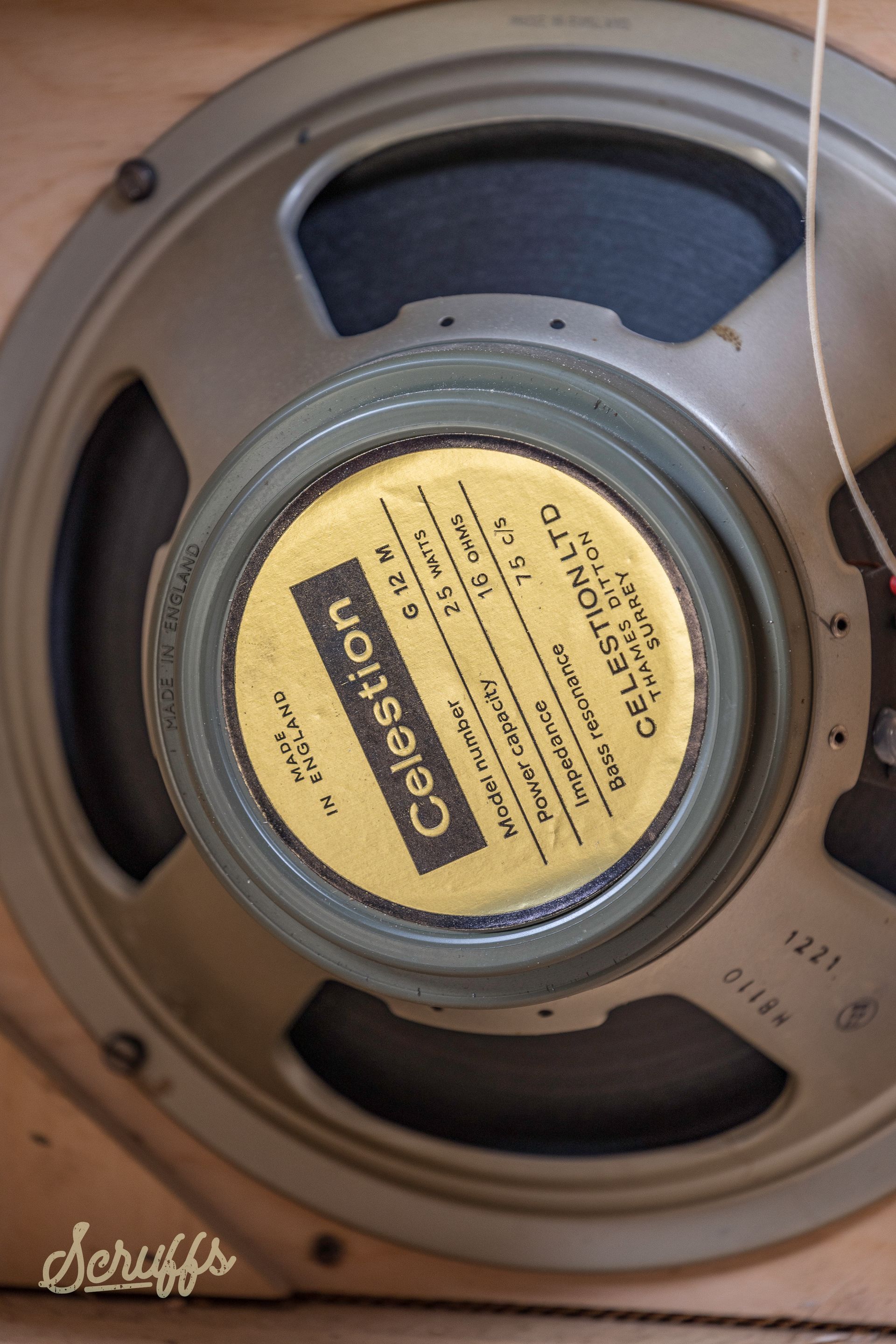

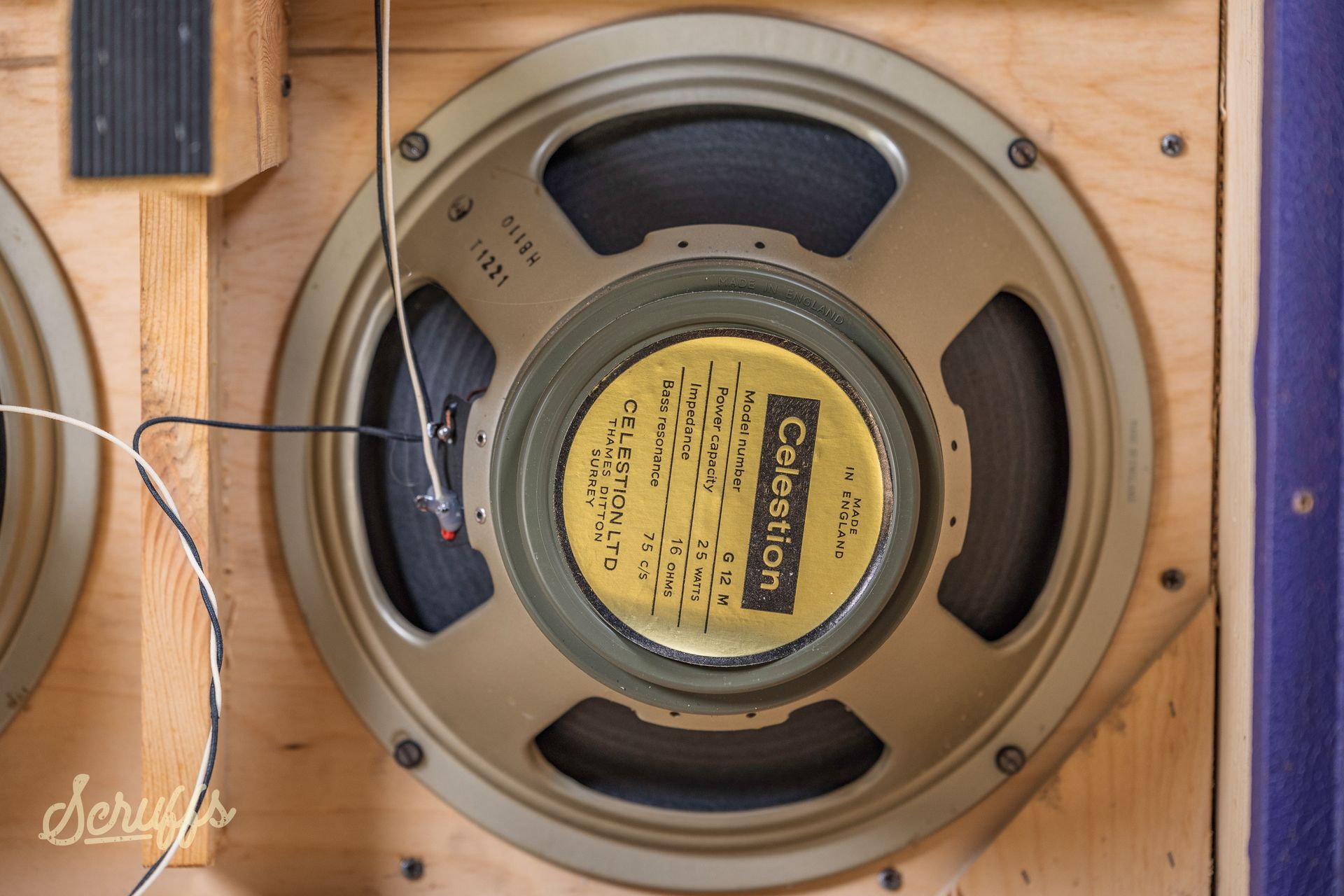

Original Model 1960 cabinets from the early ’70s are highly prized today, especially when loaded with Celestion G12M "Greenbacks" or G12H-30s. Collectors value intact tolex, original grill cloth, and matching date-coded speakers. The cabinet’s timeless look and unmistakable tone make it a centerpiece in any vintage Marshall collection.
